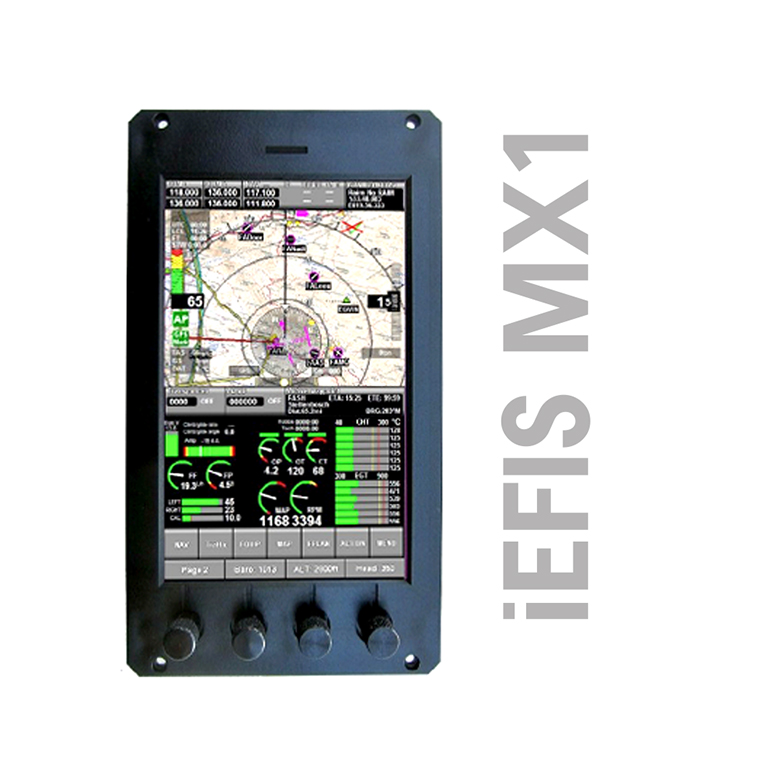

    iEFIS MX1

    Different from its iEFIS siblings, the iEFIS MX1 is  based on the latest developments in microcontroller technology. Microcontrollers have become very powerful indeed and are encroaching on the performance advantages of application processors. The MX1 is a manifestation of this. It packs most of the functionality of a traditional iEFIS system into a lower cost solution that requires fewer components resulting directly in potentially higher robustness and reliability in challenging environments.

    The MX1 shines as a low cost single panel solution for many applications but can just as well be combined into an integrated multi-panel system with up to 8 panels very similar to a traditional, full function iEFIS system.

    Simple installation and wiring up with built in, newly developed AHRS, altimeter to 40.000ft, dual airspeed sensors covering the range from just 20mph to mach 1 at sea level, built in AOA sensor, audio voice annunciation and sound generators for AOA and Vario, OAT sensor and built in WAAS GPS qualified to TSO-C199 SIL/SDA of 1/1. CAN bus and 4 internal RS232 ports (expandable to 8 ports). Support for all MGL devices and peripherals and several third party products. Analog and digital inputs and outputs with the iEFIS Expander.

    Full iEFIS autopilot (up to three axis control), interfaces to transponders, COM and NAV radios as well as the MGL A16 intercom system.

    Compatible with Custom User screens like previous iEFIS products

    Operates in both portrait and landscape modes!
