The iBox is the heart of the iEFIS system, and the conductor in the symphony of communication between all system devices and the iEFIS screens. The iBox contains the GPS engine (with antenna connection), the pitot/static sensors and Angle of Attack sensors. The iBox is the hub of communication for all the system devices (AHRS, RDAC, Autopilot Servos) and is also the hub of communication with all third party devices (radios, transponders, ADS-B, VP-X) via its RS-232 and ARINC interfaces.

One iBox is necessary in every iEFIS system, and in cases where maximum redundancy is required, a 2nd iBox can be added to the system. The 2nd iBox acts as a ‘hot standby’ and is ready to take over all iBox tasks automatically when necessary, or on command by the pilot.



Click on the DB-25 connectors above to see more information on those connectors.

The Power Connector (pigtail harness included with every iBox):
The iBox can be powered by 1 or 2 Power Sources (as in the case of a backup battery system). It also has a Keep Alive Power input that maintains date and time and some non-volatile memory items without using the CR2032 battery, which can result in up to 10 years of life on the CR2032 eliminating the need to change this battery every year. The Outside Air Temp sensor also connects to the Power connector.

The CAN Connector (pigtail harness included with every iBox):
The iBox features 2 CAN buses (CAN 1 and CAN 2). The system devices can be split up in any way on each of the CAN buses.

OAT Probe
Our aluminum OAT probe is included with every iBox

GPS Antenna
Our tuned GPS Antenna is included with every iBox (inside mount)

EFIS LAN coax
An RG-174 EFIS LAN coax cable is included with each system
Facebook Twitter Email YouTube
  • CONTACT US
  • ORDERS
Facebook Twitter Pinterest linkedin Telegram
Michigan Avionics Michigan Avionics
Select category
  • Select category
  • Accessories
  • AHRS
  • Autopilot
  • Blaze Singles
  • Controllers
  • EFIS
  • EMS
  • Harnesses
  • Power Distribution
  • Premium Support
  • Radios
  • Safety Equipment
  • Transponders
  • Uncategorized
  • Vega Singles
Login / Register
0 Wishlist
0 items / $0.00
Menu
Michigan Avionics Michigan Avionics
0 items / $0.00
Browse Categories
  • EFIS
  • Vega Singles
  • Blaze Singles
  • EMS
  • AHRS
  • Radios
  • Autopilot
  • Transponders
  • Harnesses
  • Accessories
  • Controllers
  • Power Distribution
  • Safety Equipment
  • iEFIS
  • XTreme
  • Support
    • Customer Support
    • Support Portal
    • Database Updates
    • Firmware Updates
  • Information
    • Terms & Conditions
    • Privacy Policy
    • Shipping & Payments
    • Warranty & Returns
    • News
  • The Pros
    • Rob Holland
    • Jet Waco
    • Kirby Chambliss
Store Front
  • GET SUPPORT
iEFIS Extender - MGL Avionics
Click to enlarge
HomeEFIS iEFIS Extender
Previous product
Delta POP Transponder Antenna - Michigan Avionics
Delta Pop Transponder Antenna $85.00
Back to products
Next product
RG-400 BNC to BNC - Michigan Avionics
RG 400 coax cable, with 2 BNC connectors $55.00 – $105.00

iEFIS Extender

$270.00

iEFIS Expansion Module

In stock (can be backordered)

Complete your install with this harness!
iEFIS Extender - MGL Avionics
This item: iEFIS Extender

In stock (can be backordered)

$270.00
$270.00
Harnesses - Michigan Avionics
MGL iEFIS Extender Harness

In stock (can be backordered)

$249.00
Compare
Add to wishlist
SKU: iEFIS-Extender Category: EFIS
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
  • iEFIS Extender Manuals
Description

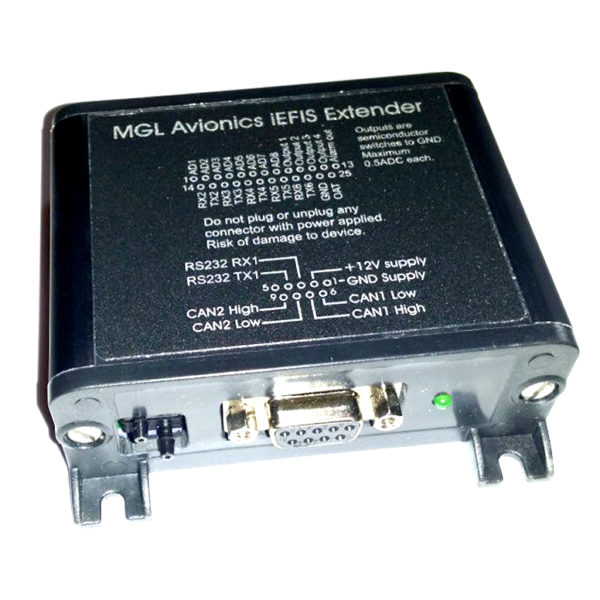

MGL Avionics iEFIS Extender
