A-16 Audio - MGL Avionics
Click to enlarge
HomeRadios A16 Audio Panel Intercom
Previous product
N-16 NAV Radio - MGL Avionics
N16 VHF NAV Radio $790.00
Back to products
Next product
Trig Interface - Michigan Avionics
Trig Interface Connector $190.00

A16 Audio Panel Intercom

$750.00

Remote Mount Audio Panel and Intercom

In stock (can be backordered)

Complete Your System
A-16 Audio - MGL Avionics
This item: A16 Audio Panel Intercom

In stock (can be backordered)

$750.00
$750.00
Razor Intercom - MGL Avionics
1 × Razor Intercom

In stock (can be backordered)

$395.00
Harnesses - Michigan Avionics
1 × A16 Audio Panel Harnesses
Harness Types:
Clear
$449.00 – $565.00
Add MGL Radios and a Control Interface and harness to Get The Most From Your Installation
Compare
Add to wishlist
SKU: A-16 Category: Radios
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
  • A16 Manuals
Description

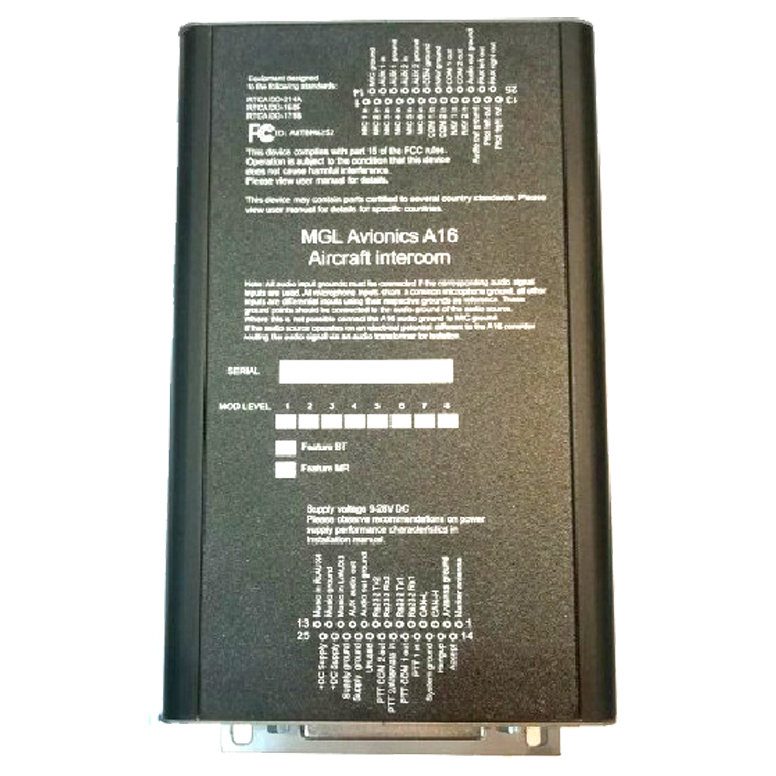

Meet the MGL Avionics A-16 Audio Panel and Intercom

The MGL Avionics A-16 is a remote mount split-module audio panel and intercom consisting of the audio panel system body and external control unit (panel-mount Razor control or EFIS).

Features:

  • Six independent microphone channels, each with own VOX and sensitivity settings to allow
    mixed headsets. Channels can be grouped into Pilot and Passenger groups.
  • Support for two COM radios, each with audio input and output and individual PTT control.
  • Level control for all audio signals
  • Support for two NAV radio audio inputs with individual level control.
  • Two independent auxiliary audio inputs with individual level control.
  • Wired stereo music input with level control – may be reassigned as two further AUX
    channels.
  • Auxiliary audio output (Typical use for cockpit voice recorders etc).
  • Bluetooth mobile phone support to make and receive calls. Optional wired inputs for call
    and hangup buttons.
  • Bluetooth stereo music streaming support.
  • Firmware updates via Bluetooth connection (requires PC or Laptop computer with Bluetooth
    running Windows 7 or later).
  • Firmware update of connected Razor control head via A16 Firmware updates
  • Built in cockpit voice recorder (CVR). This device records in an “endless tape” fashion all
    microphone circuits as well as both COM radio inputs. It records about 35 minutes worth of
    audio. It only records active audio, not any silence so silence periods do not use up recording
    time. Recording may be played back as a block via all headset outputs or it can be extracted
    in digital form via the RS232 port 1 using the supplied application from MGL Avionics
Additional information
Specs

Electrical Input Voltage: 10-28 Vdc
Current Draw @ 13.8V: .12A
Dimensions: 30mm H x 88mm W x 165.5mm L
Weight: 300 Grams
Temperature: -20 degrees to +55 degrees C

Brand

MGL Avionics

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “A16 Audio Panel Intercom” Cancel reply

You must be logged in to post a review.

A16 Manuals
Icon

A16 Installation Manual

1 file(s) 3.11 MB
Download
