XTreme EFIS / EMS

$1,029.00 – $1,399.00

EFIS / EMS systems utilizing existing 3 1/8″ Panel Provisions

Complete your system with these options!
XTreme EFIS - MGL Avionics
This item: XTreme EFIS / EMS

Available on backorder

$1,029.00 – $1,399.00
$1,029.00 – $1,399.00
RDAC XF / XF MAP - MGL Avionics
1 × RDAC
RDAC Model
Clear

Available on backorder

$215.00 – $405.00
SP6 and SP7 - MGL Avionics
1 × AHRS Bundle

Available on backorder

$960.00
Harnesses - Michigan Avionics
1 × XTreme EFIS/EMS Harnesses
Harness Types:
Clear

Available on backorder

$109.00 – $119.00
The EMS version will not use the AHRS bundle.
Clear
Compare
Add to wishlist
SKU: N/A Categories: EFIS, EMS
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
  • Xtreme Manuals
  • Xtreme Drawings
  • Xtreme Videos
Description

Xtreme EFIS

What is it?

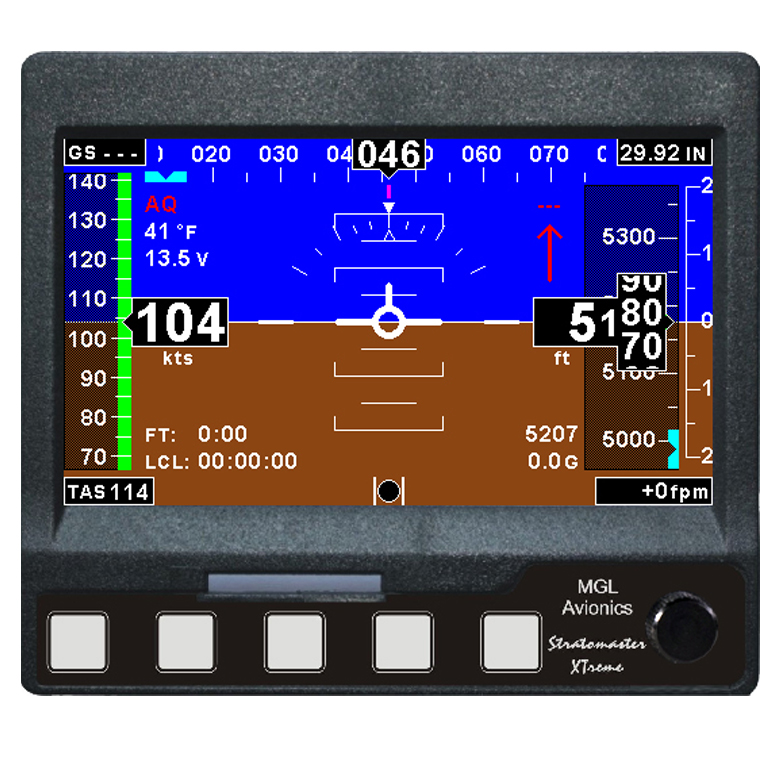

The XTreme EFIS is an affordable mini EFIS. It can be configured as a PFD (with AHRS sensors added), and/or an engine monitor (with RDAC added). It includes a GPS receiver that is used to provide ground speed and range information, a basic CDI navigator, and as a backup/control for the AHRS. If you do not select the SP-7 attitude sensor, you can still have a GPS-derived bank angle display!

You can use it as…

  • Primary EFIS
  • Backup EFIS
  • Engine Monitor
  • EFIS/Engine Monitor
  • Basic GPS Navigator with CDI (no moving map)
  • 2-Axis Autopilot

Some might use it for just 1 function, or you could use all functions!

Note: You can share the AHRS sensor data between several XTreme EFIS units, and you can share the RDAC engine data between several XTreme EFIS units or a mixture of XTreme EFIS units and XTreme EMS units. With the XTreme EMS you can add a 2nd display for engine-only at little expense!

XTreme EMS

What is it?
The XTreme EMS is a full-featured , full color Engine Monitoring System for just about any engine.

Using an MGL Avionics RDAC for engine sender connection in the engine compartment, all sensor data is sent through the firewall through a single serial cable, making installation clean and easy.

4 and 6 cylinder engines are fully supported, with up to 12 total channels of CHT or EGT available in any combination.

2 fuel level inputs are available and fuel flow is supported.

Battery voltage is standard and current monitoring is an available option.

An easy-to-read display with alarms on every channel make an engine instrument scan a 1-second affair!

Note: You can share the RDAC engine data between several XTreme EMS units or a mixture of XTreme EFIS units and XTreme EMS units. You can use the XTreme EMS as a 2nd engine display when using the XTreme EFIS for Primary Flight.

Additional information
XTreme Model

EFIS, EMS

Power Specs

Voltage: 8-30 Volts with Over Volt and Reverse Polarity Protection
Current: 130mA @ 13.8V (EMS), 200mA @ 13.8V (EFIS)

Screen Size

4.3"

Screen Resolution

480 x 272

Bezel Size

110mm x 97.5mm

Brand

MGL Avionics

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “XTreme EFIS / EMS” Cancel reply

You must be logged in to post a review.

Xtreme Manuals
Icon

XTreme EFIS Operating & Installation Manual

1 file(s) 5.07 MB
Download
Icon

XTreme EMS Operating & Installation Manual

1 file(s) 9.76 MB
Download
Icon

XTreme Rotax 912iS Setup

1 file(s) 45.62 KB
Download
Icon

XTreme iS Series Setup

1 file(s) 45.62 KB
Download

Xtreme Drawings
Icon

XTreme EFIS Drawing

1 file(s) 77.49 KB
Download
Icon

XTreme EMS Drawing

1 file(s) 77.11 KB
Download
Icon

XTreme Architecture

1 file(s) 213.41 KB
Download
Xtreme Videos

V6 VHF Com Radio
