The iBox is the heart of the iEFIS system, and the conductor in the symphony of communication between all system devices and the iEFIS screens. The iBox contains the GPS engine (with antenna connection), the pitot/static sensors and Angle of Attack sensors. The iBox is the hub of communication for all the system devices (AHRS, RDAC, Autopilot Servos) and is also the hub of communication with all third party devices (radios, transponders, ADS-B, VP-X) via its RS-232 and ARINC interfaces.

One iBox is necessary in every iEFIS system, and in cases where maximum redundancy is required, a 2nd iBox can be added to the system. The 2nd iBox acts as a ‘hot standby’ and is ready to take over all iBox tasks automatically when necessary, or on command by the pilot.

Click on the DB-25 connectors above to see more information on those connectors.

The Power Connector (pigtail harness included with every iBox):
The iBox can be powered by 1 or 2 Power Sources (as in the case of a backup battery system). It also has a Keep Alive Power input that maintains date and time and some non-volatile memory items without using the CR2032 battery, which can result in up to 10 years of life on the CR2032 eliminating the need to change this battery every year. The Outside Air Temp sensor also connects to the Power connector.

The CAN Connector (pigtail harness included with every iBox):
The iBox features 2 CAN buses (CAN 1 and CAN 2). The system devices can be split up in any way on each of the CAN buses.

OAT Probe
Our aluminum OAT probe is included with every iBox

GPS Antenna
Our tuned GPS Antenna is included with every iBox (inside mount)

EFIS LAN coax
An RG-174 EFIS LAN coax cable is included with each system

Click to enlarge

Previous product

MGL Avionics ECB CAN Bus Harness $65.00

Back to products

Next product

Electronics International Fuel Flow Transducer FT-90 $235.00

Magnetic Current Sensor – Closed Loop

Name: Magnetic Current Sensor - Closed Loop
SKU: MAG-CURRENT-LOOP
Price: 85.00 USD
Availability: InStock

$85.00

Effective Current Measurement Without Adding Wire Breaks

In stock (can be backordered)

Compare

Add to wishlist

SKU: MAG-CURRENT-LOOP Category: EMS

Description

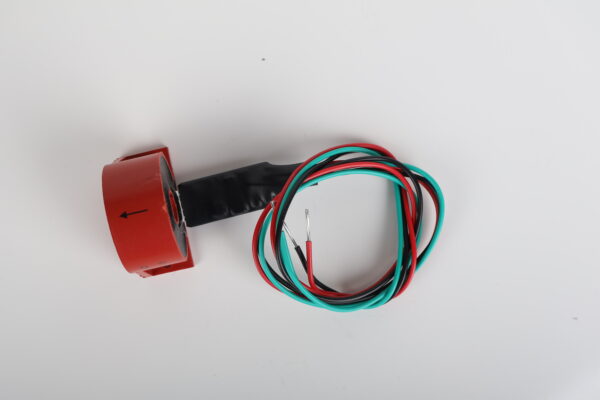

MGL Avionics’ Closed Loop Magnetic Current Sensor builds upon our popular hall-effect sensor by providing further isolation of outside interference by creating a closed-loop ring-style sensing field encased in a protective shield.

Further developments include the ability to mount this sensor to your firewall or other bulkhead.

This sensor measures current up to 50 Amps. If your maximum load will be less, you can loop the wire through the sensor multiple times to decrease measurement range but dramatically increase accuracy and interference rejection.

This sensor is compatible with all MGL Avionics products that supported the cable-mount magnetic current sensor.
