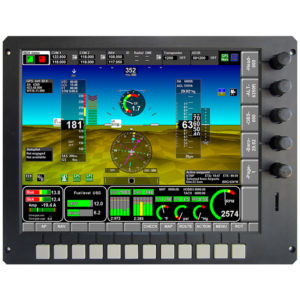

The iBox is the heart of the iEFIS system, and the conductor in the symphony of communication between all system devices and the iEFIS screens. The iBox contains the GPS engine (with antenna connection), the pitot/static sensors and Angle of Attack sensors. The iBox is the hub of communication for all the system devices (AHRS, RDAC, Autopilot Servos) and is also the hub of communication with all third party devices (radios, transponders, ADS-B, VP-X) via its RS-232 and ARINC interfaces.
One iBox is necessary in every iEFIS system, and in cases where maximum redundancy is required, a 2nd iBox can be added to the system. The 2nd iBox acts as a ‘hot standby’ and is ready to take over all iBox tasks automatically when necessary, or on command by the pilot.
Click on the DB-25 connectors above to see more information on those connectors.
The Power Connector (pigtail harness included with every iBox):
The iBox can be powered by 1 or 2 Power Sources (as in the case of a backup battery system). It also has a Keep Alive Power input that maintains date and time and some non-volatile memory items without using the CR2032 battery, which can result in up to 10 years of life on the CR2032 eliminating the need to change this battery every year. The Outside Air Temp sensor also connects to the Power connector.
The CAN Connector (pigtail harness included with every iBox):
The iBox features 2 CAN buses (CAN 1 and CAN 2). The system devices can be split up in any way on each of the CAN buses.
Our aluminum OAT probe is included with every iBox
Our tuned GPS Antenna is included with every iBox (inside mount)
EFIS LAN coax
An RG-174 EFIS LAN coax cable is included with each system
The MGL Avionics AvioGuard is an Isolated DC/DC converter for avionics applications.
A wide input range (9-36V) solution provides clean 13.8V DC for quality power supply to sensitive avionics in the cockpit. High levels of fault protection and complete galvanic input to output isolation plus simple avionics battery backup solutions complete this useful device.
DC input voltage range: 9V to 36V
DC output voltage: 12V, 12.6V, 13.2V, 13.8V (
DC output current: 0-6A continuous. 8A peak (short duration). 10A maximum
150 x 100 x 44 mm (including connectors and mounting flanges).
Flanges are 80 x 14 x 2.5 mm.
Mounting holes are 5 mm diameter (4 holes, two in each flange).
Hole spacing is 137 x 60 mm, symmetrical.
