The iBox is the heart of the iEFIS system, and the conductor in the symphony of communication between all system devices and the iEFIS screens. The iBox contains the GPS engine (with antenna connection), the pitot/static sensors and Angle of Attack sensors. The iBox is the hub of communication for all the system devices (AHRS, RDAC, Autopilot Servos) and is also the hub of communication with all third party devices (radios, transponders, ADS-B, VP-X) via its RS-232 and ARINC interfaces.

One iBox is necessary in every iEFIS system, and in cases where maximum redundancy is required, a 2nd iBox can be added to the system. The 2nd iBox acts as a ‘hot standby’ and is ready to take over all iBox tasks automatically when necessary, or on command by the pilot.



Click on the DB-25 connectors above to see more information on those connectors.

The Power Connector (pigtail harness included with every iBox):
The iBox can be powered by 1 or 2 Power Sources (as in the case of a backup battery system). It also has a Keep Alive Power input that maintains date and time and some non-volatile memory items without using the CR2032 battery, which can result in up to 10 years of life on the CR2032 eliminating the need to change this battery every year. The Outside Air Temp sensor also connects to the Power connector.

The CAN Connector (pigtail harness included with every iBox):
The iBox features 2 CAN buses (CAN 1 and CAN 2). The system devices can be split up in any way on each of the CAN buses.

OAT Probe
Our aluminum OAT probe is included with every iBox

GPS Antenna
Our tuned GPS Antenna is included with every iBox (inside mount)

EFIS LAN coax
An RG-174 EFIS LAN coax cable is included with each system
Facebook Twitter Email YouTube
  • CONTACT US
  • ORDERS
Facebook Twitter Pinterest linkedin Telegram
Michigan Avionics Michigan Avionics
Select category
  • Select category
  • Accessories
  • AHRS
  • Autopilot
  • Blaze Singles
  • Controllers
  • EFIS
  • EMS
  • Harnesses
  • Power Distribution
  • Premium Support
  • Radios
  • Safety Equipment
  • Transponders
  • Uncategorized
  • Vega Singles
Login / Register
0 Wishlist
0 items / $0.00
Menu
Michigan Avionics Michigan Avionics
0 items / $0.00
Browse Categories
  • EFIS
  • Vega Singles
  • Blaze Singles
  • EMS
  • AHRS
  • Radios
  • Autopilot
  • Transponders
  • Harnesses
  • Accessories
  • Controllers
  • Power Distribution
  • Safety Equipment
  • iEFIS
  • XTreme
  • Support
    • Customer Support
    • Support Portal
    • Database Updates
    • Firmware Updates
  • Information
    • Terms & Conditions
    • Privacy Policy
    • Shipping & Payments
    • Warranty & Returns
    • News
  • The Pros
    • Rob Holland
    • Jet Waco
    • Kirby Chambliss
Store Front
  • GET SUPPORT
Michigan Avionics Michigan Avionics
  • iEFIS
  • XTreme
  • Support
    • Customer Support
    • Support Portal
    • Database Updates
    • Firmware Updates
  • Information
    • Terms & Conditions
    • Privacy Policy
    • Shipping & Payments
    • Warranty & Returns
    • News
  • The Pros
    • Rob Holland
    • Jet Waco
    • Kirby Chambliss
Login / Register
0 Wishlist
0 items / $0.00
Menu
Michigan Avionics Michigan Avionics
0 items / $0.00
Sold out

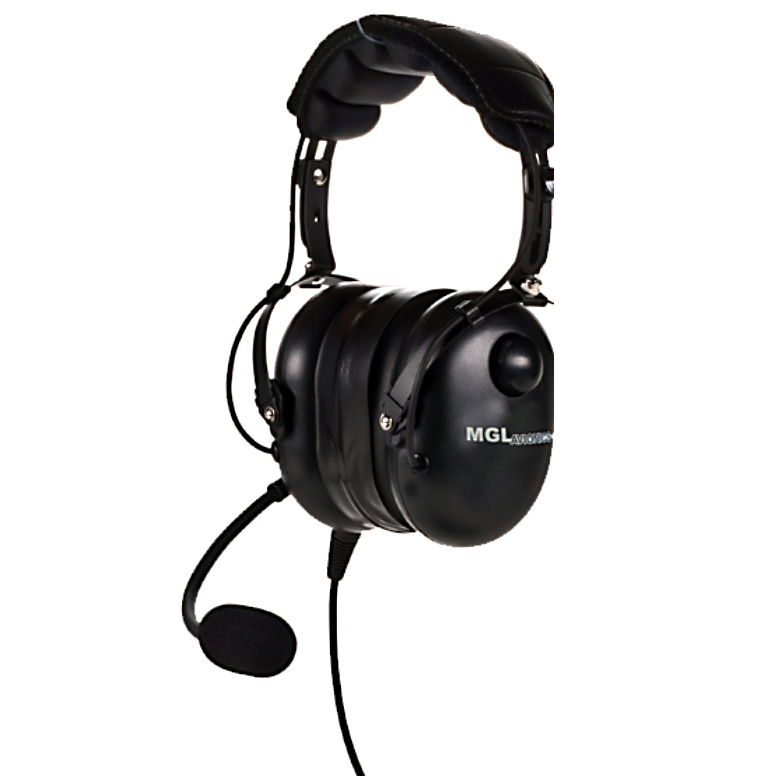

Headset - MGL Avionics
Click to enlarge
HomeAccessories MGL Headset
Previous product
Autopilot Servo Capstan - MGL Avionics
Autopilot Servo Capstan $319.00
Back to products
Next product
Delta pop Redtail Antennas - Michigan Avionics
Delta Pop Red Tail Antennas $155.00 – $165.00

MGL Headset

$125.00

Out of stock

Email when stock available

Compare
Add to wishlist
Category: Accessories
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Additional information
  • Reviews (0)
  • Autopilot Manuals
Description

This headset is manufactured to MGL avionics’s own specifications by one of the World’s largest headset manufacturers. Perfectly matched for use with the MGL V6, but suitable for use with any intercom or transceiver.

Features:

High class anthracite look, metal frame – hand adjustable, no tools required.
Very comfortable headband resulting in no pressure points due to light overall weight.
Operates as mono or stereo headset with volume and balance controls and very good audio quality.
Super soft gel ear seals with soft material allows for a good acoustic seal even if you are wearing glasses.
Very high passive noise suppression figures over the full audio band.
Filtered, noise canceling microphone.
Gold plated connectors and high quality, long life cable.
Reversible microphone boom.

The MGL Avionics aviation headset offers exceptional value for money – a quality passive headset at a fantastic price!

Specifications:
Stereo and mono operation
Soft silicone gel filled earcups
Gold plated Headphone and Microphone plugs
Metal swivel gooseneck and metal microphone boom
Extremely light and strong at only 20.5oz / 580g
Excellent passive noise reduction rating of 27dB
Clear frequency response from 20-17,000Hz, distortion free through entire range
Adjustable open foam cushioned headband
Quick response noise canceling filter amplified electret microphone with wind muff

Conforms to FAA TSO C57a and TSO C58a
